In today’s eco-conscious world, achieving energy independence has become a paramount goal for many households and businesses. With the rise of renewable energy sources, particularly solar power, this dream is increasingly within reach. This guide by Terawatt Solar, aims to shed light on one of the critical aspects of solar power systems: battery sizing for photovoltaic (PV) systems.

What are PV Systems?

Introduction to Photovoltaic Systems

Photovoltaic (PV) systems are solar energy systems designed to harness the sun’s energy and convert it into electrical power. They utilize solar panels composed of numerous solar cells that generate electricity through the photovoltaic effect.

Components of a PV System

Solar Panels

The most visible and essential components of a PV system are solar panels. They consist of multiple solar cells made from semiconductor materials, like silicon, which absorb sunlight and convert it into electricity.

Inverters

Inverters are key components that convert the direct current (DC) produced by solar panels into alternating current (AC), the standard electrical current used in homes and businesses.

Mounting Structures

Mounting structures securely hold solar panels in place, either on roofs or on the ground. These structures are designed to optimize the angle and orientation of panels for maximum sunlight exposure.

Electrical Hardware

This includes wiring, switches, and a metering system. These components ensure safe operation of the PV system and allow the measurement of electricity production.

The Role of Batteries in PV Systems

Significance of Batteries in PV Systems

Batteries in photovoltaic (PV) systems play a crucial role in energy storage, allowing for the effective utilization of solar power. They store excess electricity generated by solar panels during peak sunlight hours for use when solar production is low, such as during night or cloudy days.

How Batteries Enhance PV Systems

Ensuring Energy Reliability

Batteries provide a consistent energy supply by storing excess solar power. This is especially important in off-grid systems or during grid outages, ensuring that electricity is always available.

Maximizing Solar Energy Use

With battery storage, solar energy can be used more efficiently. Instead of exporting excess energy to the grid, it can be stored and used when needed, reducing reliance on grid electricity.

Balancing Energy Production and Consumption

Batteries help balance the energy produced by solar panels with the consumption patterns of the household or facility, leading to a more efficient energy system.

The Path to Energy Independence

Assessing Your Energy Needs

Conducting an Energy Audit

To achieve energy independence, it’s crucial to understand your current energy consumption. An energy audit involves analyzing past electricity bills and identifying major energy-consuming appliances and patterns of use.

Identifying Peak Energy Usage

Understanding when and how you use the most energy helps in designing a PV system that meets these demands. This includes considering seasonal variations in energy use.

Solar Energy Potential

Evaluating Geographic Location

The solar potential varies significantly based on geographic location. Factors like the number of sunny days, the angle of the sun, and climatic conditions play a vital role in the efficiency of solar panels.

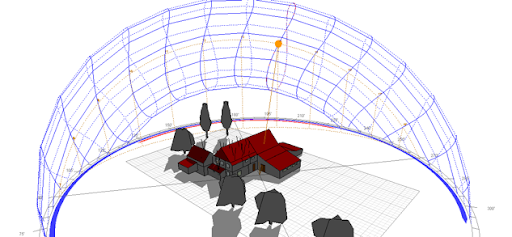

Site Assessment for Solar Installation

A thorough site assessment is necessary to determine the optimal placement of solar panels. This assessment includes analyzing roof orientation, shading from trees or buildings, and available space.

Designing an Efficient PV System

Choosing the Right Solar Panels and Inverters

Selecting the appropriate solar panels and inverters is crucial. Factors like panel efficiency, inverter compatibility, and system scalability should be considered.

Integrating Battery Storage

Incorporating battery storage is essential for storing excess solar power generated during peak hours. This storage allows for the use of solar energy even when the sun isn’t shining, further enhancing energy independence.

Financial Considerations

Understanding the Investment

Investing in a PV system and battery storage is a significant financial decision. It’s important to consider the initial costs, potential savings on energy bills, and available incentives or rebates.

Return on Investment (ROI)

Calculating the ROI involves comparing the upfront costs of the system against long-term savings from reduced electricity bills and potential earnings from excess energy production.

Battery Sizing for PV Systems

Proper battery sizing is crucial for the efficiency and longevity of a photovoltaic (PV) system. It ensures that there is sufficient energy storage to meet the power demands during periods when the solar panels are not producing electricity, such as at night or during overcast conditions.

Understanding Your Energy Consumption

Analyzing Daily Energy Usage

The first step in battery sizing is to calculate your daily energy consumption in kilowatt-hours (kWh). This can be done by analyzing electricity bills or using energy monitoring systems. For example, if your household consumes 30 kWh per day, this is your target energy storage capacity.

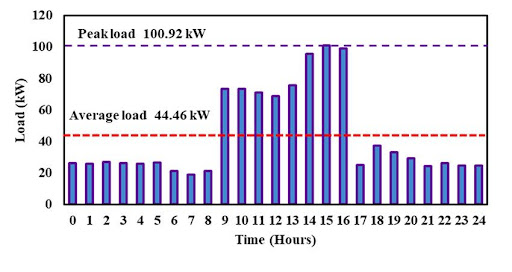

Identifying Peak Load and Load Profile

Understanding when and how you use energy throughout the day (your load profile) is important. Peak load times, when energy consumption is highest, are critical in determining the battery’s discharge rate.

Calculating Battery Capacity

Total Energy Requirement

Suppose your average daily energy consumption is 30 kWh. If you want your battery system to cover 100% of this usage during days without solar input, the total energy requirement is also 30 kWh.

Days of Autonomy

Days of autonomy refer to how many days you want the system to run without solar input. For instance, if you desire three days of autonomy, the total energy requirement becomes 30 kWh/day × 3 days = 90 kWh.

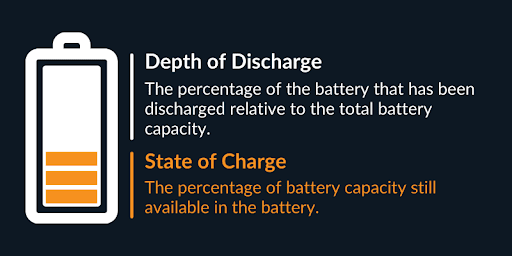

Depth of Discharge (DoD)

Not all the stored energy in a battery is usable, as fully discharging a battery can significantly reduce its lifespan. For instance, if a battery has a recommended DoD of 80%, and you need 90 kWh, the required battery capacity is 90 kWh / 0.80 = 112.5 kWh.

Choosing the Right Battery Type

Lithium-Ion vs. Lead-Acid Batteries

The choice of battery type affects the overall storage capacity and efficiency. Lithium-ion batteries generally have a higher DoD (up to 95%) and energy density compared to lead-acid batteries (typically 50-80% DoD).

Battery Efficiency

Battery efficiency must be considered, as some energy is lost in storage and retrieval. If a lithium-ion battery has an efficiency of 95%, and you need 90 kWh, you actually need 90 kWh / 0.95 = 94.74 kWh of usable capacity.

Solar Panel Output and Battery Sizing

Matching Solar Panel Output

The battery size should complement the solar panel output. If your solar system produces 40 kWh on an average day, but you use only 30 kWh, a smaller battery may suffice, considering the excess production.

Seasonal Variations

Consider seasonal variations in solar production. In winter, solar output might decrease, requiring a larger battery capacity to compensate for the reduced solar generation.

System Voltage and Battery Capacity

Understanding System Voltage

PV systems can have different operating voltages, commonly 12V, 24V, or 48V. The system voltage impacts the total battery capacity required. For a 48V system needing 112.5 kWh, you would need 112.5 kWh / 48V = 2343.75 ampere-hours (Ah).

Making the Right Choice: Battery Brands and Technologies

Top Battery Brands

Tesla

Tesla, known for its innovation in electric vehicles and energy storage, offers the Powerwall, a lithium-ion battery designed for home energy storage. It’s renowned for its sleek design, high energy density, and smart capabilities. The Powerwall seamlessly integrates with solar systems, providing reliable energy storage and backup power.

LG Chem

LG Chem, a subsidiary of LG Corporation, provides advanced lithium-ion batteries for residential, commercial, and utility applications. Their RESU series, particularly popular in home energy storage, is known for its compact size, high efficiency, and durability.

Sonnen

Sonnen is a leader in smart energy storage solutions. Their eco and ecoLinx systems offer innovative features like intelligent energy management, emergency backup, and solar self-consumption. Sonnen’s batteries are designed for high performance and long-term reliability.

Emerging Battery Technologies

Solid-State Batteries

Solid-state batteries represent a significant leap in battery technology. They use solid electrolytes instead of liquid ones, offering improved safety, higher energy densities, and longer lifespans. Companies are investing heavily in this technology, which is expected to revolutionize the market in the coming years.

Flow Batteries

Flow batteries, particularly vanadium redox flow batteries, are gaining attention for large-scale energy storage. They offer long lifecycle, quick response times, and are not prone to degradation like traditional batteries. This makes them ideal for grid storage and renewable integration.

Sodium-Ion Batteries

Sodium-ion batteries are emerging as a cost-effective and environmentally friendly alternative to lithium-ion batteries. They use abundant sodium instead of rare lithium, potentially reducing costs and environmental impact. Their performance in terms of energy density is rapidly improving, making them a viable option for the future.

Stepping into a Sustainable Future

Achieving true energy independence through solar power and efficient battery sizing is a significant step towards a sustainable future. By understanding your energy needs, evaluating your solar potential, and choosing the right battery system, you can harness the power of the sun to its fullest.
